Manufacturer Part NumberSDM02U30CSP-7
Manufacturer / BrandDiodes Incorporated
Available Quantity18450 Pieces
Unit PriceQuote by Email ([email protected])

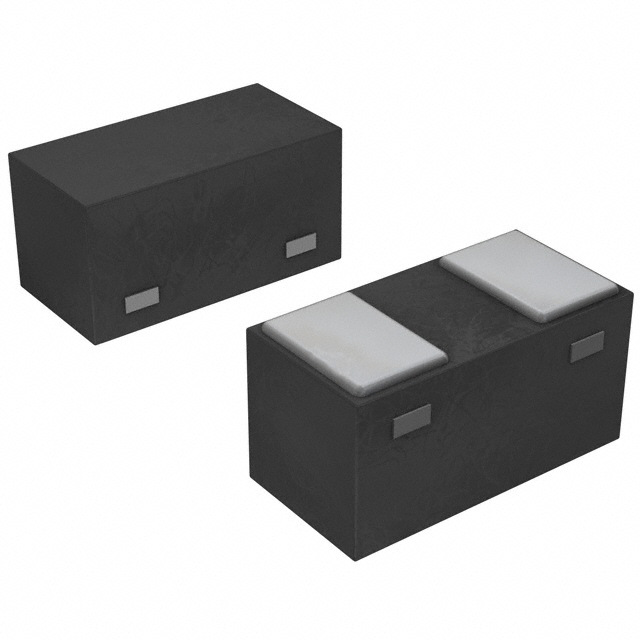

Brife DescriptionDIODE SCHOTTKY X3-WLB0603-2
Product CategoryDiodes - Rectifiers - Single
Lead Free Status / RoHS StatusLead free / RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Delivery Time1-2 Days
Date Code (D/C)New
Datasheet Download SDM02U30CSP-7.pdf

Please fill the below inquiry form, we will reply you the quotation for SDM02U30CSP-7 within 24 hours.

Part Number
SDM02U30CSP-7
Production Status (Lifecycle)
Contact us
Manufacturer Lead time
6-8 weeks
Condition
New & Unused, Original Sealed
Shipping way
DHL / FEDEX / UPS / TNT / EMS / Normal Post
Part Status
Active
Diode Type
Schottky
Voltage - DC Reverse (Vr) (Max)
30V
Current - Average Rectified (Io)
200mA
Voltage - Forward (Vf) (Max) @ If
500mV @ 200mA
Speed
Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)
-
Current - Reverse Leakage @ Vr
50µA @ 30V
Capacitance @ Vr, F
9pF @ 0.5V, 1MHz
Mounting Type
Surface Mount
Package / Case
2-SMD, No Lead
Supplier Device Package
X3-WLB0603-2
Operating Temperature - Junction
-55°C ~ 150°C
Weight
Contact us
Application
Email for details
Replacement Part
SDM02U30CSP-7
